Name: BOMAG BM 2200/75 Cold Milling Machine
Brand: BOMAG
SKU: BM 2200/75

Whether you're digging foundations or building communities, our reliable equipment delivers precision for construction work. Select from top brands like Komatsu, BOMAG, and Takeuchi, plus custom attachments to ensure you have the right tools for the job.

Balancing economic harvesting with sustainable forest management is key to preservation. With rugged, purpose-built forestry equipment from TimberPro and Komatsu, you can manage just that. Our team is ready to assist you no matter how remote your site is.

Dense urban areas can limit your ability to work efficiently, but our compact solutions from trusted brands like Takeuchi can help you navigate tightly confined spaces with the horsepower you require.

BOMAG

BM 2200/75

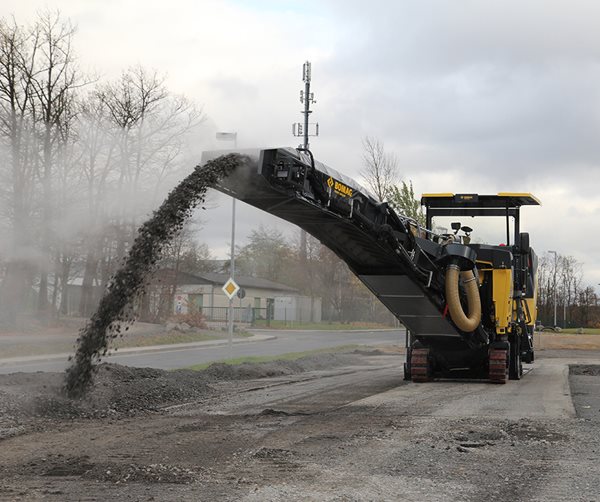

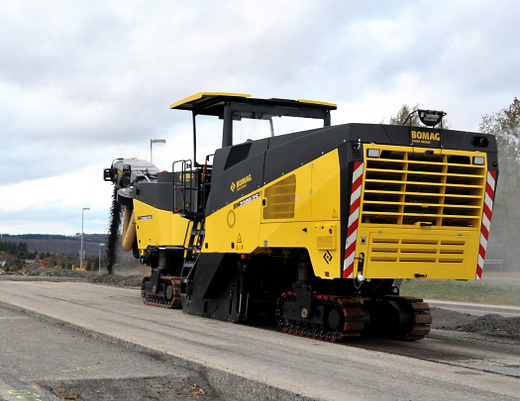

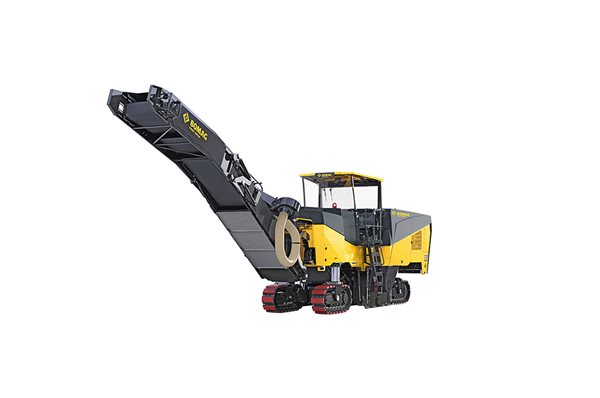

The new BOMAG BM 2200/75 cold milling machine is designed for selective milling of road and base materials. Its output and efficiency makes it ideally suited to large-scale projects on motorways, major roads and airports. However, this unit is designed for effective operations on many more applications: the wide range of milling drums, unique manoeuvrability and large conveyor belt slewing swivel angle makes this model popular and a reliable choice even for smaller projects. With a standard width of 2,200 mm and a maximum milling depth of 350 mm, large material volumes can be quickly removed in one pass. Low operating costs are another major feature.

Emission Rating

Tier 4 Final

Milling Width

86.6 ″ (2200 mm)

Max Milling Depth

13.8 ″ (351 mm)

Engine Power

771 HP (567 kW)

Operating Weight

83551 lb (37898 kg)

Download BM 2200/75 Brochure

Features

Maximum milling performance for an average milling depth at average speed

Applications: Removing asphalt strips, creating duct trenches, road repairs, and universal surfacing work

With BOMAG TELEMATIC, every machine is just a mouse click away. You can retrieve location and operating data at any time and manage your fleet more efficiently. Automatic reports provide full transparency on fuel consumption, idle times, and the potential for fleet optimisation. BOMAG TELEMATIC also includes real-time monitoring of pending maintenance and service history.

The BMS 15 holder system is slimmer than other systems. This leads to lower resistance, which reduces fuel consumption and improves the advance travel rate.

Optimum milling profile for a shallow milling depth at high speed

Applications: Restoring uneven road surfaces and rutting

Equipped with a hydraulic, folding conveyor belt as standard: simple transport and maximum on-site utilisation.

Maximum milling performance for deep milling at low speed

Applications: Removing surfaces at full depth, creating duct trenches, and applying surface texture

Comfortable seating position when working: for maximum output during, long stress-free working shifts.

Specs & Compare

Printer Friendly Version

Select up to 4 models to compare specifications

Features

STANDARD MILLING DRUM

BOMAG TELEMATIC

BOMAG BMS 15 HOLDER SYSTEM

BOMAG FINE MILLING DRUM

EASY TRANSPORTATION

BOMAG POWER-DRUM MILLING DRUM

OPERATOR COMFORT
