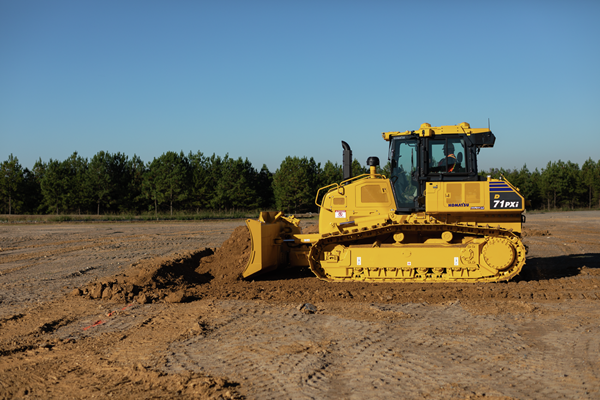

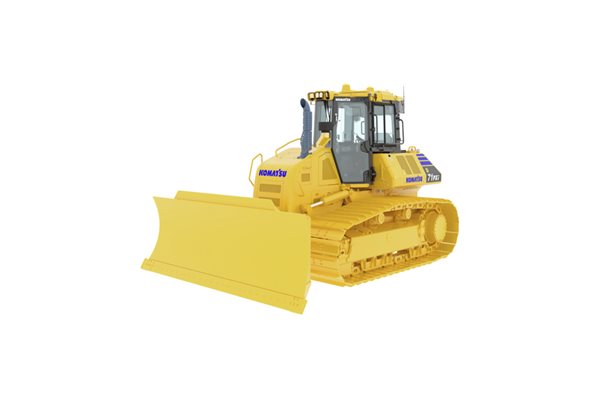

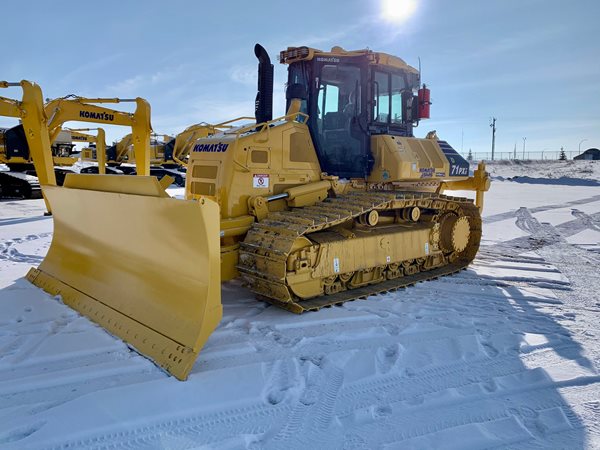

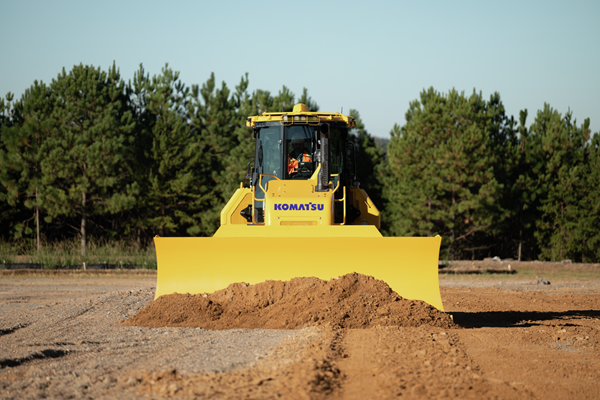

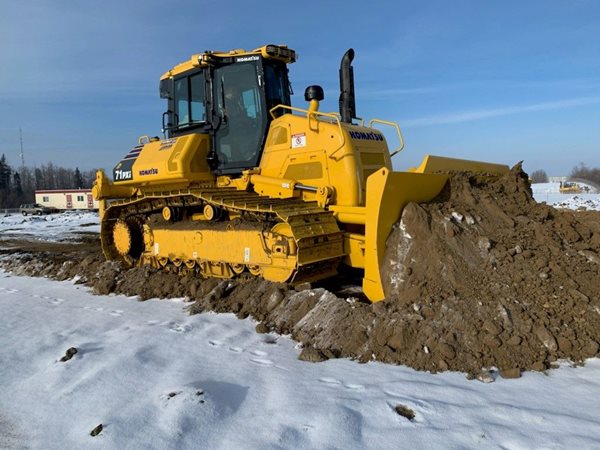

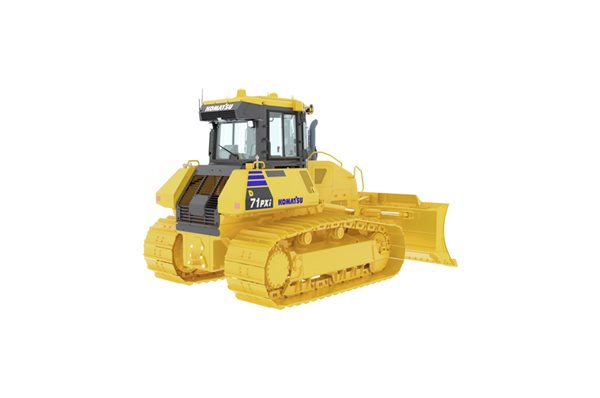

Name: Komatsu D71PXi-24 Dozer
Brand: Komatsu
SKU: D71PXi-24

Whether you're digging foundations or building communities, our reliable equipment delivers precision for construction work. Select from top brands like Komatsu, BOMAG, and Takeuchi, plus custom attachments to ensure you have the right tools for the job.

Balancing economic harvesting with sustainable forest management is key to preservation. With rugged, purpose-built forestry equipment from TimberPro and Komatsu, you can manage just that. Our team is ready to assist you no matter how remote your site is.

Dense urban areas can limit your ability to work efficiently, but our compact solutions from trusted brands like Takeuchi can help you navigate tightly confined spaces with the horsepower you require.

In Stock

6 more images

In Stock

Komatsu

D71PXi-24

The industry’s newest slant slant-nosed, intelligent HST dozer features the latest iMC 2.0 capabilities, and patent-pending proactive dozing control with the ability to operate automatically 100% of the time

Emission Rating

Tier 4 Final

Net Horsepower

237 HP @2,100 rpm (177 kW @2,100 rpm)

Max Operating Weight

51147 lb (23200 kg)

Blade Capacity

6.1 yd³ (4.65 m³)

Download D71PXi-24 Brochure

Features

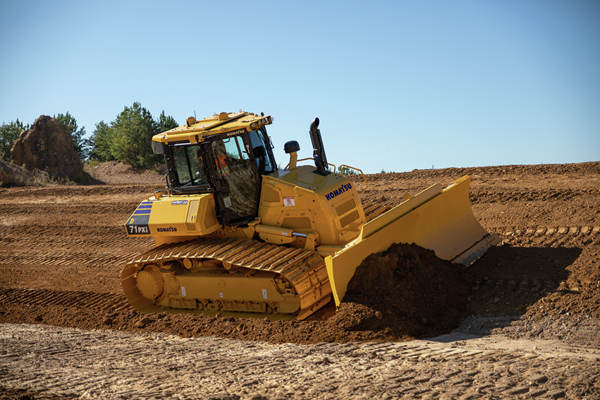

Outstanding visibility to the cutting edges and excellent balance and maneuverability with a super-slant nose cab-forward design.

Smooth, powerful turns with hydrostatic steering. Fully electronic control provides complete automatic shifting and allows for Quick-Shift or variable speed selection.

In P mode, the engine outputs its full power to help your operator perform heavy-load work. It automatically increases engine speed for maximum power when load increases. H mode increases engine high idle speed, suitable for power-intensive work.

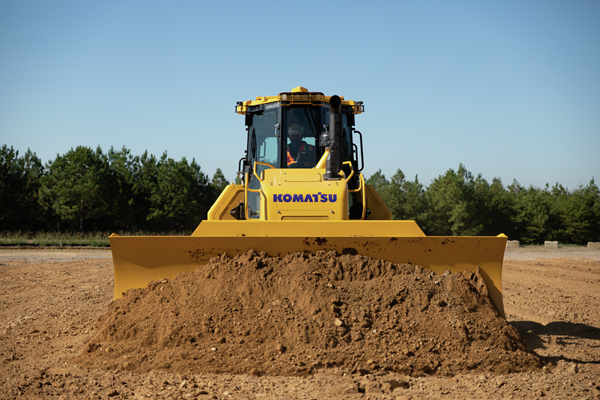

Flexibility to adapt to various situations and the ability to be efficient and productive regardless of the terrain with a versatile 6-way PAT (power angle tilt) blade pitch system.

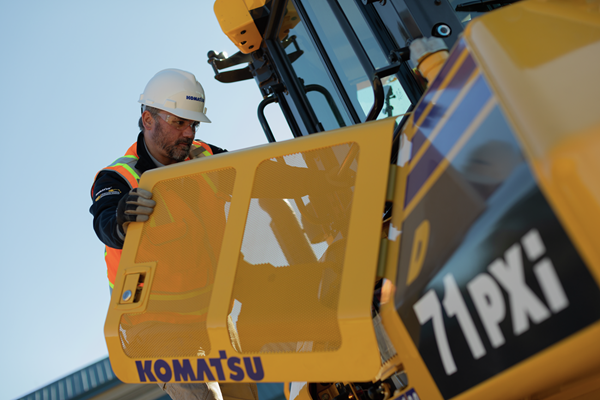

Easy access to the radiator, oil cooler and charge air cooler with swing-up assisted lift system. Hydraulic fan reverses for clearing objects restricting air flow. Rear-mounted single-plane cooling system swings up for fast service.

Designed to wear evenly so the machine provides close to 100% usage of undercarriage components, Komatsu PLUS undercarriage lowers undercarriage maintenance costs by up to 40% over a conventional undercarriage. Strengthened rollers and links increase wear life up to two times.

To provide your operation with even more versatility and adaptability, the D71 is available with an optional 36-inch wide shoe for low ground pressure applications.

Designed for your operator’s comfort and ease of use, the ergonomic, low-effort palm command control system (PCCS) joystick controls all directional movements, including machine travel speed and counter-rotation.

To help maximize operator comfort and connectivity, the D71 comes with standard Bluetooth AM/FM radio and additional AUX and USB connection capability.
