Name: Komatsu PC290LC-11 Excavator
Brand: Komatsu
SKU: PC290LC-11

Whether you're digging foundations or building communities, our reliable equipment delivers precision for construction work. Select from top brands like Komatsu, BOMAG, and Takeuchi, plus custom attachments to ensure you have the right tools for the job.

Balancing economic harvesting with sustainable forest management is key to preservation. With rugged, purpose-built forestry equipment from TimberPro and Komatsu, you can manage just that. Our team is ready to assist you no matter how remote your site is.

Dense urban areas can limit your ability to work efficiently, but our compact solutions from trusted brands like Takeuchi can help you navigate tightly confined spaces with the horsepower you require.

In Stock

Komatsu

PC290LC-11

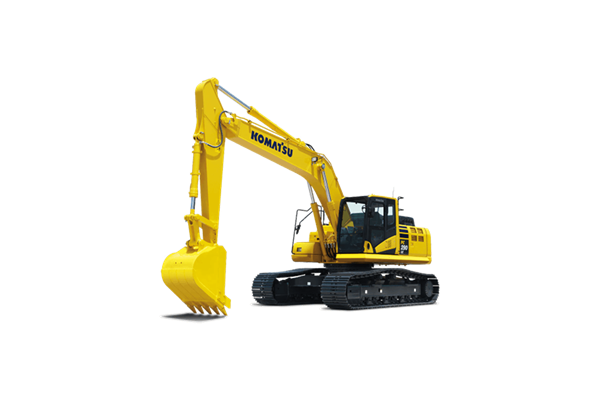

The PC290LC-11 is a mid-size hydraulic excavator designed for long reach. The long arm and boom combined with a heavy-duty undercarriage provides an extended reach with a stable platform.

Emission Rating

Tier 4 Final

Net Horsepower

196 HP @2,050 rpm (147 kW @2,050 rpm)

Max Operating Weight

72091 lb (32700 kg)

Max Bucket Capacity

2.13 yd³ (1.63 m³)

Max Digging Depth

23′4″ (7120 mm)

Download PC290LC-11 Brochure

Features

Large displacement hydraulic implement pumps provide high flow output at lower engine RPM, operating at the most efficient engine speed.

Smooth operation, quick cycle times, great multi-function, while lowering fuel consumption from closed-center load-sensing hydraulic system.

Equipment designed for long-term durability with high resistance to bending and torsional stress. Booms and arms are constructed with thick plates of high tensile strength steel and designed with large cross-sectional areas.

A heavy-duty after-treatment system that combines a Komatsu Diesel Particulate Filter (KDPF) and select catalytic reduction (SCR). The system injects the correct amount of diesel exhaust fluid at the proper rate, decomposing nitrogen oxide.

Engine oil check and filter locations are integrated into one side to allow easier maintenance access. A new step provides easier access for filling the AdBlue/DEF tank.

Wide spacious cab includes a heated air suspension seat with reclining backrest. Seat height and position are easily adjusted using a pull-up lever. Armrest position easily adjusted with the console.

Updated. large, high-resolution LCD color monitor for accurate and smooth work. Key machine information displayed in user-friendly interface, rearview camera and DEF level gauge display added to default main screen.

A ROPS cab that confirms to ISO 12117-2 comes as standard equipment.

An operator identification ID can be set up for each operator and used to manage operation information of each individual machine using Komtrax data. Data can analyze operation status by operator and by machine.

Auto idle shutdown automatically shuts the engine down after idling for a set period to reduce unnecessary fuel consumption and exhaust emissions. Time before engine is shutdown can be programmed from 5 to 60 minutes.

Large heavy-duty revolving frame guards and swivel guard help protect vital components from damage and debris build-up.

Specs & Compare

Printer Friendly Version

Select up to 4 models to compare specifications

Features

Large displacement high-efficiency pump

Closed-center load-sensing hydraulic system

Built for strength

Cleaner emissions

Ease of maintenance and serviceability

Advanced ergonomic design

Information at your fingertips

Rollover protection

Multi-operator productivity

Reduce fuel consumption

Designed for durability
