Name: Komatsu PC650LC-11 Excavator
Brand: Komatsu
SKU: PC650LC-11

Whether you're digging foundations or building communities, our reliable equipment delivers precision for construction work. Select from top brands like Komatsu, BOMAG, and Takeuchi, plus custom attachments to ensure you have the right tools for the job.

Balancing economic harvesting with sustainable forest management is key to preservation. With rugged, purpose-built forestry equipment from TimberPro and Komatsu, you can manage just that. Our team is ready to assist you no matter how remote your site is.

Dense urban areas can limit your ability to work efficiently, but our compact solutions from trusted brands like Takeuchi can help you navigate tightly confined spaces with the horsepower you require.

Komatsu

PC650LC-11

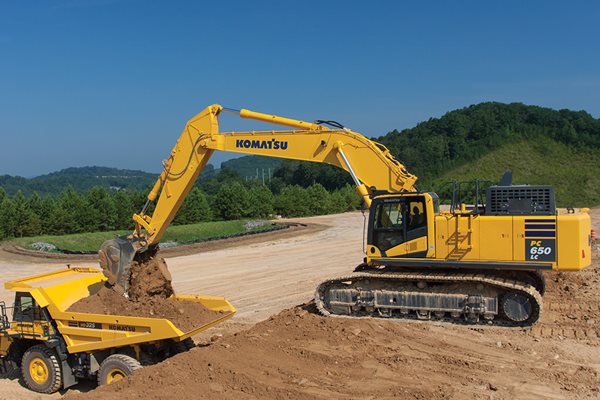

The PC650LC-11 is an excellent match for high production loading of 30-40-ton trucks and well suited for deep sewer and water trenching applications. It is designed to accommodate flexible job operations that require frequent transportation. Reduce disassembly and time is required.

Emission Rating

Tier 4 Final

Net Horsepower

436 HP @1,800 rpm (325 kW @1,800 rpm)

Max Operating Weight

144292 lb (65480 kg)

Max Bucket Capacity

4.98 yd³ (3.81 m³)

Max Digging Depth

33′7″ (10225 mm)

Download PC650LC-11 Brochure

Features

New SAA6D140E-7 Tier 4 Final Engine
Low DEF fluid consumption
Low operating noise
Easy serviceability of emissions components
Improved cooling capacitytransport

Up to 6% less fuel consumption than previous model
Improved engine and hydraulic efficiency
Auto idle and auto idle shut down

Designed to accommodate flexible job operations, reduced disassembly required.
Low transport height
Standard Variable Track Gauge
Counterweight remover option

Excellent match for high production loading of 30-40 ton trucks and deep sewer and water trenching applications
Quick cycle times with dual swing motors, arm regeneration valve and quick arm return valve
Best in class digging depth range
Excellent work equipment drift control with boom and arm hold valves

Komatsu designed and manufactured components.
High rigidity frames and use of large castings.
Flat face O-ring hydraulic connections.
Sealed DT type electrical connectors.
Standard carbody swivel guard

ROPS (ISO12117-2 ) Level 1 Operator Protective Guard (OPG) Top Guard (ISO 1262) certified structure.
High back, heated fully adjustable operators seat
Standard rearview monitoring system
Auto climate control with high capacity heating and cooling system
Advanced telematics with KOMTRAX level 5
Operator ID feature

Komatsu CARE
Grouped maintenance components for easy serviceability
Separated DEF pump and tank for easy access
Battery master disconnect included
Reversible hydraulic fan to clean out coolers
Swing out radiator door allows easy access to clean trapped debris on screen
Standard electric greasing gun with hose reel

Specs & Compare

Printer Friendly Version

Select up to 4 models to compare specifications

Features

EFFICIENT EPA TIER 4 FINAL EMISSION CERTIFIED ENGINE

REDUCED FUEL CONSUMPTION

TRANSPORTATION

HIGH PERFORMANCE

DURABILITY FEATURES

OPERATOR ENVIRONMENT

MAINTENANCE
