Name: Takeuchi TB230 Excavator
Brand: Takeuchi
SKU: TB230

Whether you're digging foundations or building communities, our reliable equipment delivers precision for construction work. Select from top brands like Komatsu, BOMAG, and Takeuchi, plus custom attachments to ensure you have the right tools for the job.

Balancing economic harvesting with sustainable forest management is key to preservation. With rugged, purpose-built forestry equipment from TimberPro and Komatsu, you can manage just that. Our team is ready to assist you no matter how remote your site is.

Dense urban areas can limit your ability to work efficiently, but our compact solutions from trusted brands like Takeuchi can help you navigate tightly confined spaces with the horsepower you require.

Takeuchi

TB230

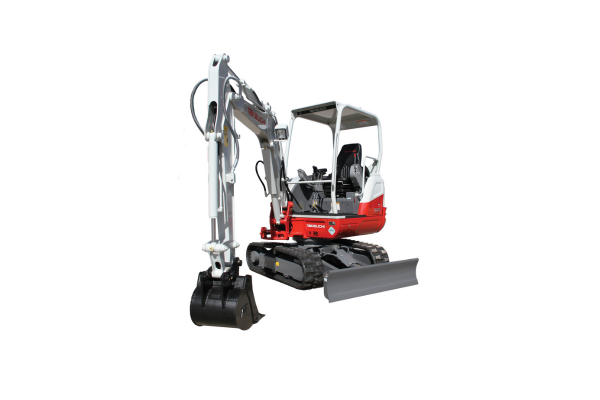

With its narrow width. the TB230 is able to work on job sites with limited accessibility, and the conventional tail swing design provides excellent stability and greater operator space. The control valve and hydraulic components are now conveniently located under the right side cover for improved accessibility.

Emission Rating

Tier 4 Final

Net Horsepower

24.4 HP @2,400 rpm (18.2 kW @2,400 rpm)

Max Operating Weight

6360 lb (2885 kg)

Max Digging Depth

9′3.6″ (2835 mm)

Download TB230 Brochure

Features

Enables you to work in a wide range of applications and the conventional tail swing provides greater stability.

Multifunction, LED monitor provides the operator with machine vitals, flow adjustments, and attachment presets.
Electronic dial-type throttle control allows the operator to quickly adjust engine speed, and the automatic engine idle feature will automatically reduce engine speed to low idle should the machine idle more than several seconds.

The low horsepower rating of the TB230 does not require the use of DOC/DPF exhaust after-treatment system.
The variable displacement axial piston pump delivers smooth, harmonized control of the work equipment with no reduction in speed.
The standard long arm with integrated thumb mount provides you with a wider working range, dig depth, and simplifies thumb installation.
Load sensing, two-speed travel down shifts automatically from low torque/high speed mode to high torque/low speed travel when turning, pushing dirt, or travelling up an incline.
Large slew bearing provides greater longevity and stability over the life of the machine.
Cushioned cylinders improve longevity by reducing shock and reduce felt recoil to the operator for greater comfort.

All-steel construction ensures body integrity through greater strength and rigidity and protects key components from damage.
Heavy duty counterweight protects vital engine and hydraulic components from damage.
Triple flange track rollers improve track life by providing greater support, and feature multiple contact points that reduce the risk of de-tracking.

Rear hood and right side cover open high overhead, providing exceptional access to inspection and maintenance points.

The safe start system requires the safety lockout lever in the raised position in order to start the excavator, ensuring hydraulic functions are inactive at start-up.

2-year standard service
Minimize downtime
Remote diagnostics
Utilization tracking
Proactive maintenance
Control costs
Geofencing

Specs & Compare

Printer Friendly Version

Select up to 4 models to compare specifications

Features

COMPACT DESIGN

OPERATOR FOCUSED

FUNCTION AND EFFICIENCY

INCREASED PROTECTION

EASE OF MAINTENANCE

SAFE START SYSTEM FOR PEACE OF MIND

TAKEUCHI FLEET MANAGEMENT
