Features

With BOMAG TELEMATIC, every machine is just a mouse click away. You can retrieve location and operation data at any time and manage your fleet more efficiently. Automatic reports provide full transparency on fuel consumption, idle times, and the potential for fleet optimization. BOMAG TELEMATIC also includes real-time monitoring of pending maintenance and service history.

Operation based on travel speed rather than revolutions: different working speeds for forward and reverse travel can be set by cruise control.

Separately adjustable standard dozer blade heights for forward and reverse travel.

Precise adjustment of dozer blade height to meet landfill requirements with the Autoblade and Blade Stepper function.

Saveable dozer blade positions: frequently used positions can be conveniently saved and retrieved at any time.

The oscillating and articulating joint keeps all four wheels on the ground. This consistent contact and pressure guarantee traction and compaction at all times.

The one-piece engine hood and the platforms left and right ensure optimum accessibility.

The high intake for cooling and combustion air in combination with the reversible airflow reduces cleaning needs to a minimum.

BOMAG's wheel design ensures the best traction and compaction effect for many hours.
BOMAG

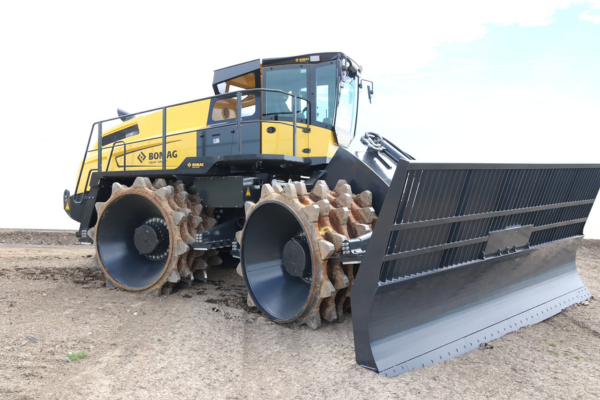

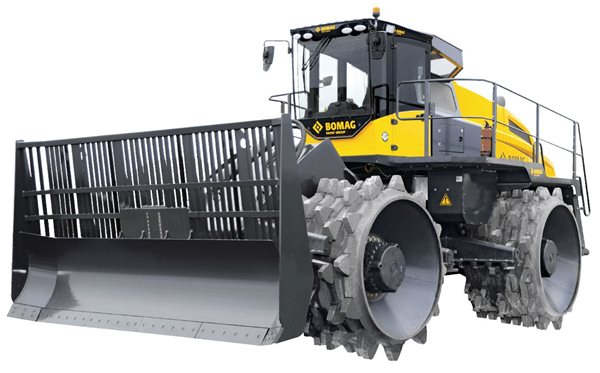

BC 973 RB-5
Waste Management
Operating Performance
Gross Weight
106925 lb (48500 kg)
Operating Weight
105602 lb (47900 kg)
Weight - Front
Weight - Rear
Number of Teeth *
72
Compaction Coverage Per Wheel
59.8 ″ (1520 mm)
Dozer Blade Capacity
20.7 yd3 (15.8 m3)
Engine
Emission Rating
Tier 4 Final
Make / Model
Cummins X15
Net Horsepower
575 HP @1,700 rpm (429 kW @1,700 rpm)
Travel Speed - Forward
7.5 mph (12 kmh)
Travel Speed - Reverse
7.5 mph (12 kmh)
Fuel Tank Capacity
258.9 U.S. gal (980 L)
Max Pushing Force
502 lbf (502 kN)
Dimensions
Overall Length
385 ″ (9780 mm)
Maximum Height
173.3 ″ (4400 mm)
Overall Width
204.7 ″ (5200 mm)
Ground Clearance
30.1 ″ (765 mm)
Compaction Wheel Diameter
86.6 ″ (2200 mm)
Compaction Wheel Width
55.1 ″ (1400 mm)
Inside Turning Radius
129.6 ″ (3292 mm)
