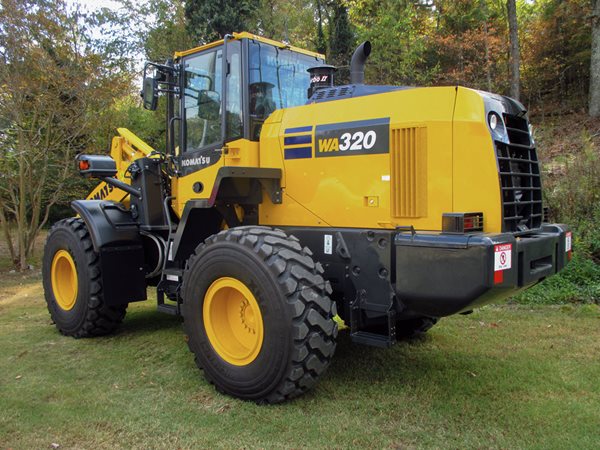

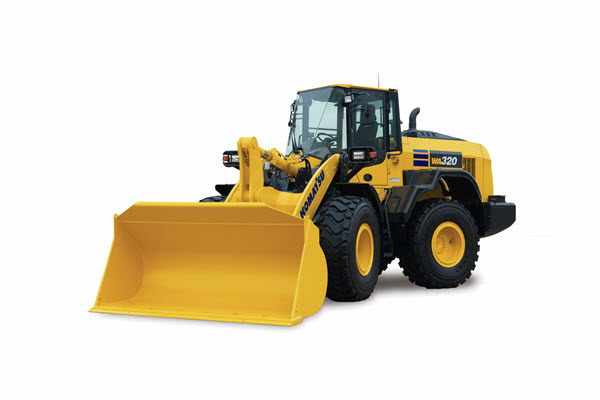

Name: Komatsu WA320-8 WH Wheel Loader
Brand: Komatsu
SKU: WA320-8 WH

Whether you're digging foundations or building communities, our reliable equipment delivers precision for construction work. Select from top brands like Komatsu, BOMAG, and Takeuchi, plus custom attachments to ensure you have the right tools for the job.

Balancing economic harvesting with sustainable forest management is key to preservation. With rugged, purpose-built forestry equipment from TimberPro and Komatsu, you can manage just that. Our team is ready to assist you no matter how remote your site is.

Dense urban areas can limit your ability to work efficiently, but our compact solutions from trusted brands like Takeuchi can help you navigate tightly confined spaces with the horsepower you require.

Komatsu WA320-8 WH

View Gallery

Komatsu WA320-8 WH

UnitsUSMetric

Emission Rating

Tier 4 Final

Net Horsepower

165 HP @2,100 rpm123 kW @2,100 rpm

Max Operating Weight

34987 lb15870 kg

Max Bucket Capacity

4.2 yd³3.2 m³

View All Specs

Features

Guard and protect the bucket cylinder rod from falling debris. Bucket position sensors and wiring protection are available on the WA270 and WA320.

Increase effective open area for airflow while reducing the amount of debris reaching the coolers.

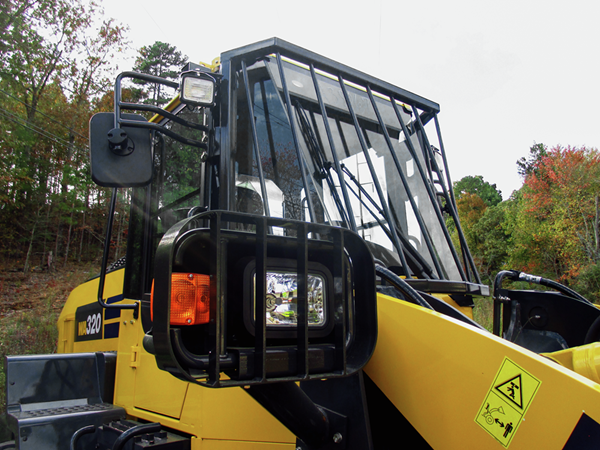

Provides an additional layer of protection to the window and operator from large debris. Guards on the front and rear lights help protect against damage.

Help keep tires from spinning with S mode and traction control, reducing wear and allowing machines to be more productive at the pile.

For protection of the engine oil pan, oil drain, and fuel tank drain. Reduces debris buildup and shields powertrain and hydraulic components.

Adjustable to ensure fit and reduce debris build-up around shaft and seals.

Provides additional protection to the hydraulic hoses and protects from wear, abrasion and cuts.

Gallery

Specs

UnitsUSMetric

Protect your wheel loader with customizable waste guarding packages that include custom guarding and steering wheel placement to improve visibility.

Operating Weight

34128 - 34987 lb15480 - 15870 kg

Max Bucket Capacity (Heaped)

4.2 yd³3.2 m³

Bucket Width

9′2740 mm

Max Dumping Clearance

11′7″3525 mm

Max Reach

9′3″2825 mm

Digging Depth - 0°

11′270 mm

Digging Depth - 10°

1′6″460 mm

Static Tipping Load: Straight

25353 lb11500 kg

Static Tipping Load: 40° Full Turn

21561 lb9780 kg

Max Bucket Breakout Force (ISO)

44287 U.S. tons197 kN

Emission Rating

Tier 4 Final

Make / Model

Komatsu SAA6D107E-3

Piston Displacement

408 in³6.69 L

Gross Horsepower

170 HP @2,100 rpm127 kW @2,100 rpm

Net Horsepower

165 HP @2,100 rpm123 kW @2,100 rpm

Max Travel Speed - Forward

23.6 mph38 kmh

Max Travel Speed - Reverse

23.6 mph38 kmh

Engine Lubrication

6 U.S. gal23 L

Cooling System

9.3 U.S. gal35.1 L

Fuel Tank Capacity

64.7 U.S. gal245 L
