Features

Working together, the leading technology Komatsu Hybrid System, Tier 4 Final engine design, and an integrated complete vehicle control system notably reduce fuel consumption.

Fuel consumption
Reduced by up to:

25% / 20% / 7%

(vs PC210LC-10 / vs PC210LC-11 / vs HB215LC-2)

Based on typical work pattern collected via KOMTRAX.

The HB215LC-3's enhanced P mode provides improved performance and productivity.

Improved productivity

Up to 8% increase

(Compared to HB215LC-1 in P mode)

90 degree swing truck loading

Hybrid system temperature gauge

The hybrid system temperature gauge is displayed on the screen. This allows the operator to understand the severity of the load on the hybrid system at a glance.

In Komatsu’s unique hybrid system, the electric swing motor-generator captures and regenerates energy as the upper structure slows down and converts it into electric energy. The regenerated energy is stored in the capacitor and used by the motor-generator to assist the engine when it needs to accelerate. The hybrid system reduces fuel consumption significantly. Most components of the system are developed and manufactured by Komatsu.

A motor-generator is positioned between the engine and hydraulic pumps to assist in rapid engine response from ultra low idle when required. The generator produces electric power and charges the capacitor when required.

An electric swing motor-generator recovers energy during swing braking. The motor-generator also accelerates the swing of the upper structure more efficiently than a conventional hydraulic motor and provides excellent swing performance. Dedicated lubrication and cooling systems are used for reliability and durability.

This new system combines a Komatsu Diesel Oxidation Catalyst (KDOC) and SCR. The SCR NOx reduction system injects the correct amount of Diesel Exhaust Fluid (DEF) at the proper rate, thereby decomposing NOx into non-toxic water (H2O) and nitrogen gas (N2).

Wide, spacious cab includes seat with reclining backrest. The seat height and recline position are easily adjusted using a pull-up lever. You can set the appropriate operational posture of armrest together with the console. Reclining the seat further enables you to place it into the fully flat state with the headrest attached.

Specs & Compare

Printer Friendly Version
Select up to 4 models to compare specifications
Komatsu

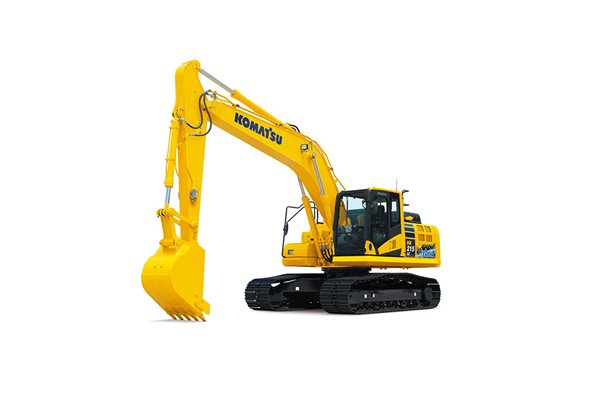

HB215LC-3 (Hybrid)
Operating Performance
Operating Weight - Backhoe
51127 - 51745 lb
(23191 - 23471 kg)
Operating Weight - Loading Shovel
Max Bucket Capacity (SAE heaped) - Backhoe
1.57 yd3 (1.2 m3)
Bucket Capacity (SAE heaped) - Loading Shovel
Max Digging Depth - Backhoe
21′9″ (6620 mm)
Max Digging Depth - Loading Shovel
Max Dump Height
23′4″ (7110 mm)
Max Dump Height - Loading Shovel
Max Bucket Breakout Force (ISO)
33510 lb (15200 kg)
Max Bucket Breakout Force (SAE) - Loading Shovel
Max Arm Digging Force (ISO)
24251 lb (11000 kg)
Max Arm Digging Force - Loading Shovel
Arm Length
9′7″ (2925 mm)
Max Lift Capacity
Undercarriage
Track Width
28″ - 31.5″
(700 - 800 mm)
Ground Pressure
5.3 - 5.99 psi
(36.54 - 41.3 kPa)
Travel Speed
1.9 - 3.4 mph
(3 - 5.5 kmh)
Ground Pressure - Loading Shovel
Engine
Emission Rating
Tier 4 Final
Make / Model
Komatsu SAA4D107E-3
Piston Displacement
272 in3 (4.46 L)
Gross Horsepower
Net Horsepower
148 HP @2,000 rpm (110 kW @2,000 rpm)
Fluid Capacities
Engine Lubrication
4.75 U.S. gal (18 L)
Cooling System
7.39 U.S. gal (28 L)
Fuel Tank Capacity
105.7 U.S. gal (400 L)
