Komatsu

PC138USLC-11

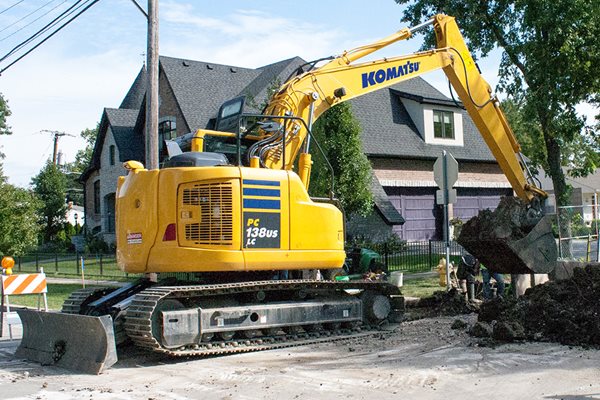

Komatsu pioneered the tight tail swing design and has optimized it further with the Tier 4 Final PC138USLC-11. With this excavator you can work in one lane of traffic without disturbing the other lane. Beyond its’ tight swing capability, the PC138USLC-11 has similar digging and lifting power as most standard competitive excavators. Six working modes and efficient Komatsu engine and hydraulic technology help make the new PC138USLC-11 up to 4% more fuel efficient than the previous model.

Emission Rating

Tier 4 Final

Net Horsepower

97.2 HP @2,050 rpm (72.5 kW @2,050 rpm)

Max Operating Weight

37547 lb (17032 kg)

Max Bucket Capacity

1 yd³ (0.76 m³)

Max Digging Depth

19′4″ (5900 mm)

Download PC138USLC-11 Brochure

Features

Get greater clearance when space is limited with a higher boom raise angle than our standard excavator that reduces the minimum front implement swing radius.

Get more done in confined areas with the short tail swing radius that allows the machine to work in more spaces than our conventional excavator.

High maneuverability is achieved through the purpose-built cabs that swings within the same radius as the counterweight. The sliding cab door allows operators to easily enter and exit when space is limited.

The compact counterweights provide exceptional lifting capability and stability providing a comfortable, confident operating experience.

Help improve efficiency with the quick return valve that directs additional oil through a second line directly back to the tank when the arm is extended, helping to reduce back pressure and fuel consumption.

For quick response to operator demands, the closed-center loading system (CLSS) helps improve fuel efficiency. Pilot proportional control (PPC) hydraulics and optional proportional joysticks provide exceptional control.

Specs & Compare

Printer Friendly Version

Select up to 4 models to compare specifications

Features

SHORT IMPLEMENT SWING RADIUS

SHORT TAIL SWING RADIUS

ROUNDED CAB DESIGN WITH SLIDING DOOR

STABLE PLATFORM

ARM QUICK RETURN VALVE

EFFICIENT HYDRAULIC SYSTEM
