Name: Komatsu PC238USLC-11 Excavator
Brand: Komatsu
SKU: PC238USLC-11

Whether you’re looking for concrete pulverizers or harvesting heads, we’re proud to offer a complete range of attachments that meet your needs — as well as your standards.

Your source for aftermarket and OEM parts in Alaska.
We provide support for all areas of your equipment, including powertrain, hydraulic systems, lighting, operator environment, undercarriage, electrical systems, cooling systems and more.

SMS Equipment holds a unique position in the industry as a one-stop supplier of the most complete range of attachments for your equipment. We offer only world renowned brand names that meet your standards of reliability and productivity.

Komatsu

PC238USLC-11

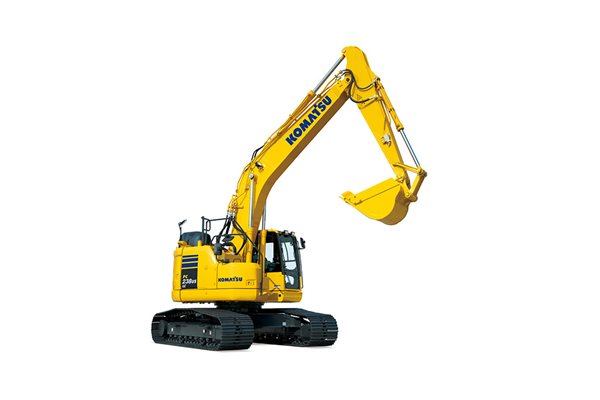

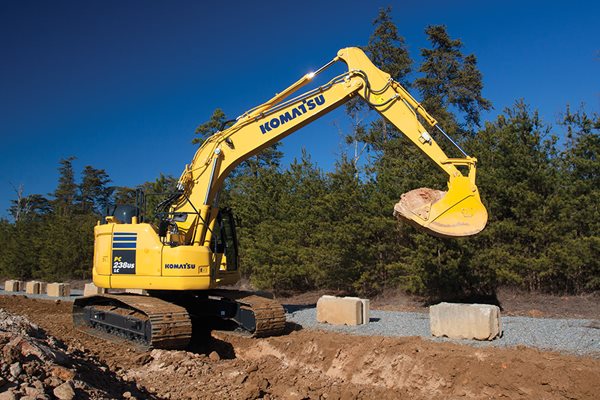

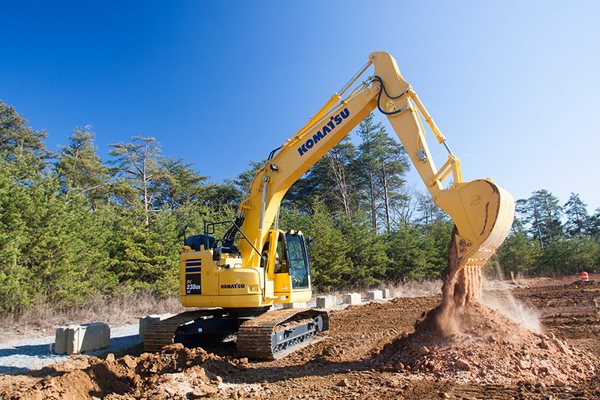

The PC238USLC-11 is Komatsu’s latest tight tail swing excavator, utilizing a Komatsu SAA6D107E-3 engine to meet Tier 4 Final emissions regulations. A new vicious fan clutch reduces engine parasitic loads, resulting in up to 4% better productivity, when compared to the PC228USLC-10. The PC238USLC-11 maintains the tight tail swing radius of its predecessor, making it well suited for utility and roadway applications working in confined spaces.

Emission Rating

Tier 4 Final

Net Horsepower

165 HP @2,000 rpm (123 kW @2,000 rpm)

Max Operating Weight

55660 lb (25250 kg)

Max Bucket Capacity

1.57 yd³ (1.2 m³)

Max Digging Depth

21′9″ (6620 mm)

Download PC238USLC-11 Brochure

Features

Get greater clearance when space is limited with a higher boom raise angle than Komatsu's standard excavator which reduces the minimum front implement swing radius

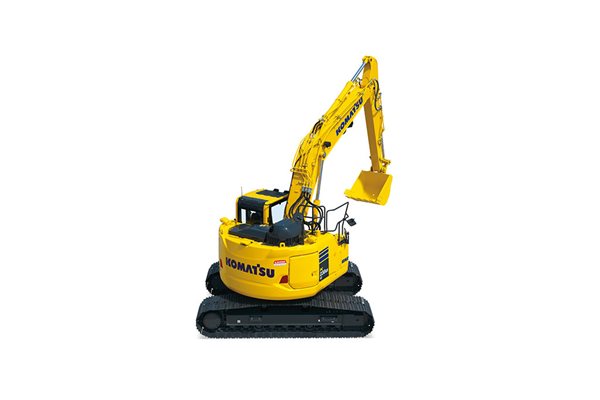

Get more done in confined areas with the short tail swing radius that allows the machine to work in more spaces than Komatsu's conventional excavator

High maneuverability is achieved through the purpose-built cabs that swings within the same radius as the counterweight. The sliding cab door allows operators to easily enter and exit when space is limited

The compact counterweights provide exceptional lifting capability and stability providing a comfortable, confident operating experience

Help improve efficiency with the quick return valve that directs additional oil through a second line directly back to the tank when the arm is extended, helping to reduce back pressure and fuel consumption

For quick response to operator demands, the closed-center loading system (CLSS) helps improve fuel efficiency. Pilot proportional control (PPC) hydraulics and optional proportional joysticks provide exceptional control

Specs & Compare

Printer Friendly Version

Select up to 4 models to compare specifications

Features

Short implement swing radius

Short tail swing radius

Rounded cab design with sliding door

Stable platform

Arm quick return valve

Efficient hydraulic system
