Features

Deluxe LED Work Lights – Provide excellent illumination in low light conditions.

Rear Camera – Allows the operator to view obstacles behind the machine for added peace of mind.

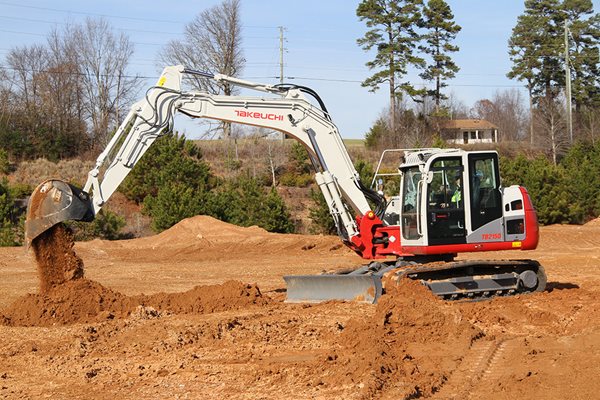

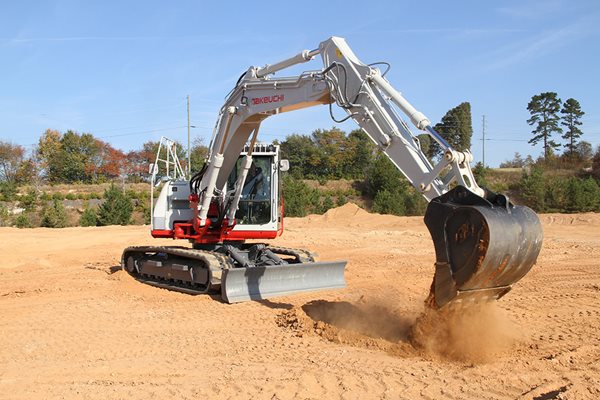

Heavy Duty Blade with Float – It is ideal for site clean-up and finish work.

Automatic Step Down Travel Motors – Provide torque on demand when pushing, climbing, or turning in high speed mode.

Dual Auxiliary Hydraulics Plumbed to Mid Arm – Allow the TB2150 to be a versatile attachment platform.

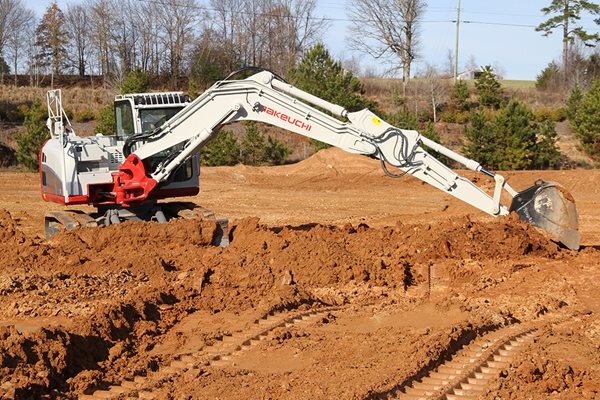

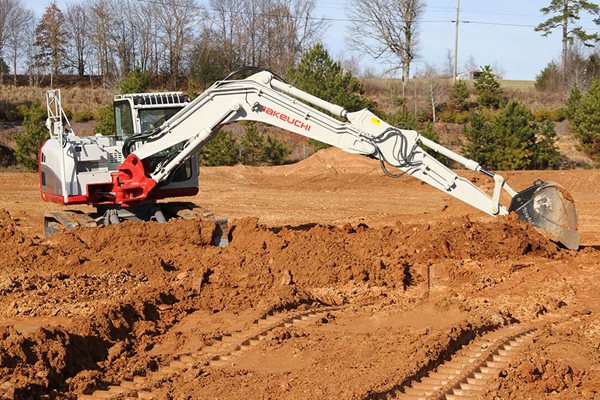

Pivot Boom – Allows the TB2150 to dig in the offset right and left positions for greater versatility.


Cushioned Hydraulic Cylinders – Reduce operator fatigue and improve component longevity.

Wrap Around Counterweight – Protects key engine and hydraulic components from damage while delivering excellent stability.

Powerful Turbocharged Engine – Provides increased horsepower and greater torque for improved performance.

Triple Flange Track Rollers – Provide increased roller to rail contact improving track retention.

Hydraulic Cooling Fan – Reduces noise levels and improves efficiency.

All Steel Construction – The engine hood, side covers and access panels are all steel for increased durability.

Top Glass with Sun Shade – Improves visibility for truck loading or to overhead obstacles, such as, power lines, and the additional sun shade reduces glare for greater operator comfort.

Deluxe High Back, Heated Air Ride Suspension Seat – Provides weight adjustment along with fore and aft movement and is also equipped with a 2 inch retractable seat belt.

Operator’s Station – Comes standard with an automotive styled interior, intuitive controls, a large 7″ color multi-informational display, and automatic climate control.

Pilot Operated Joystick Controls – Deliver precise responsive controls, and are low effort reducing fatigue.

Automatic Climate Control – Allows the operator to choose a preferred temperature for maximum comfort throughout the year.

Spacious Floor – Allows the operator to be comfortable throughout the workday, and the large foot pedals fully support the operator’s feet when using the travel function.

Exhaust After-Treatment System – Includes a maintenance free diesel oxidation catalyst (DOC), and a selective catalytic reduction (SCR) with diesel exhaust fluid (DEF) to meet to latest EPA Tier 4 emissions requirements.

Right Rear Access Panel – Allows access to the pilot line filter and pump group.

Left Side Access Cover – Provides excellent access to the dual element air cleaner and batteries.

Front Right Access Panel – Provides access to the primary and secondary fuel filters, water separator, DEF fluid pump, and large storage area for tools

Convenient Access – Oil fill, filter, and dipstick are conveniently positioned for easy access.

Rear Engine Access – Provides convenient access to daily checks and routine maintenance points.

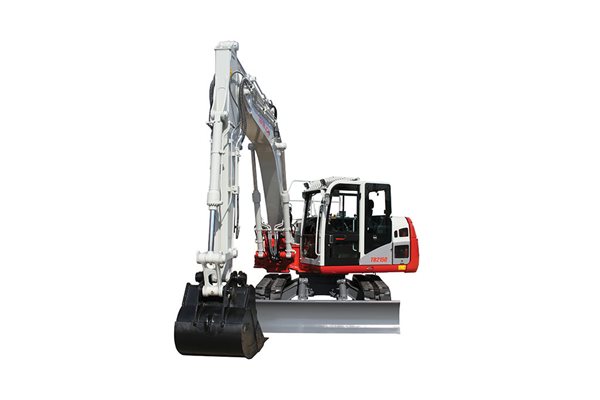

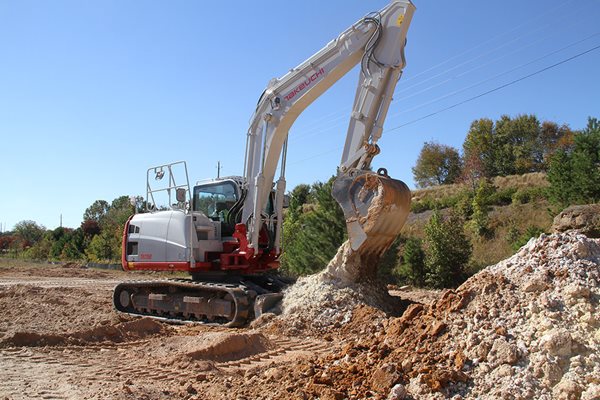

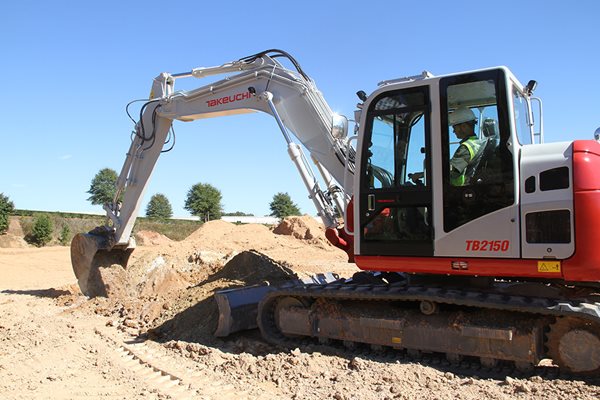

Takeuchi
TB2150
Operating Performance
Operating Weight - Backhoe
34646 - 35274 lb
(15715 - 16000 kg)
Operating Weight - Loading Shovel
Max Bucket Capacity (SAE heaped) - Backhoe
Bucket Capacity (SAE heaped) - Loading Shovel
Max Digging Depth - Backhoe
17′10.4″ (5445 mm)
Max Digging Depth - Loading Shovel
Max Dump Height
28′5″ (8670 mm)
Max Dump Height - Loading Shovel
Max Bucket Breakout Force (ISO)
22190 lb (10065 kg)
Max Bucket Breakout Force (SAE) - Loading Shovel
Max Arm Digging Force (ISO)
12557 lb (5696 kg)
Max Arm Digging Force - Loading Shovel
Arm Length
8′5″ (2570 mm)
Max Lift Capacity
Undercarriage
Track Width
20″ - 24″
(508 - 610 mm)
Ground Pressure
6.83 - 6.92 psi
(47.1 - 47.7 kPa)
Travel Speed
1.9 - 3.4 mph
(3.1 - 5.5 kmh)
Ground Pressure - Loading Shovel
Engine
Emission Rating
Tier 4 Final
Make / Model
Deutz TCD 3.6 L4 - Turbo
Piston Displacement
221 in3 (3.6 L)
Gross Horsepower
114 HP @2,000 rpm (85 kW @2,000 rpm)
Net Horsepower
114 HP @2,000 rpm (85 kW @2,000 rpm)
Fluid Capacities
Engine Lubrication
2.65 U.S. gal (10 L)
Cooling System
7.13 U.S. gal (27 L)
Fuel Tank Capacity
73.4 U.S. gal (278 L)
