Takeuchi

TB225

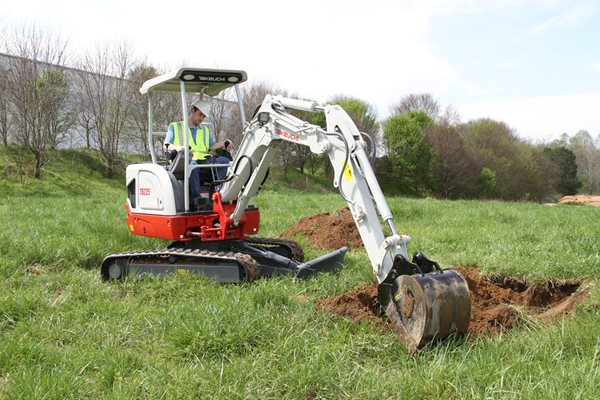

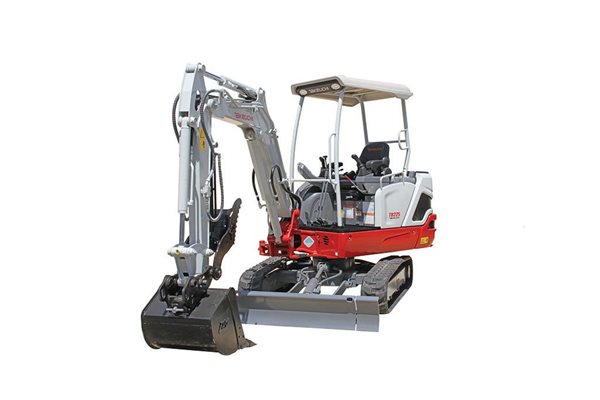

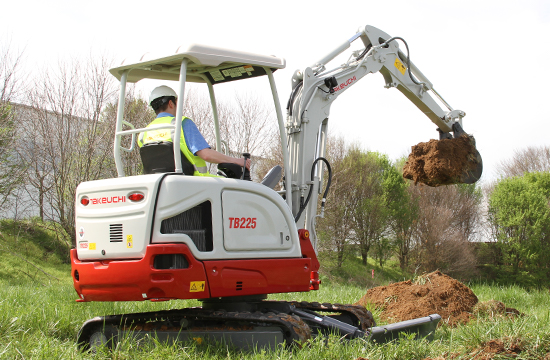

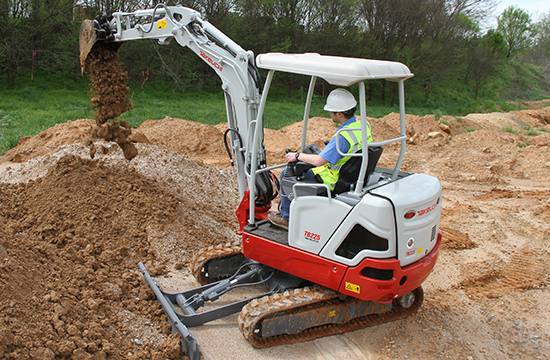

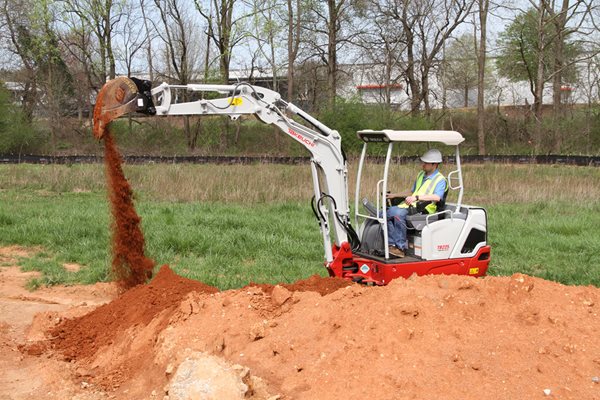

Designed to work in confined, demanding applications, the Takeuchi TB225 features many advancements in performance and technology that make it an extremely versatile and productive machine. The TB225 sets itself apart by combining features from smaller excavators, such as hydraulically retractable undercarriage, with features from larger excavators, such as electronic throttle control and electronic proportional auxiliary control. All day comfort is provided by an adjustable suspension seat, large floor with integrated foot rests, ergonomically designed pilot controls, and adjustable arm rests.

Emission Rating

Tier 4 Final

Net Horsepower

19.6 HP @2,400 rpm (14.6 kW @2,400 rpm)

Max Operating Weight

4993 lb (2265 kg)

Max Digging Depth

8′5.5″ (2580 mm)

Download TB225 Brochure

Features

Powering the TB225 is a Yanmar 3TNV80F diesel engine that is U.S. EPA Tier 4 Final compliant and delivers 19.6 horsepower and nearly 50 ft-lb of torque.

Matched to this engine is our four pump hydraulic system which provides smooth, coordinated control during simultaneous operation of the boom, arm, bucket, and slew functions without any reduction in work speed and performance.

In order to minimize machine repositioning, the TB225 features a standard long arm that provides greater reach and dig depth while also maintaining excellent bucket breakout and arm crowd forces.

To increase speed and efficiency, automatic step-down travel motors will shift to high torque mode when turning, traveling up an incline, or backfilling with the blade. Once the load is reduced the travel motors will automatically return to high speed, low torque mode.

The operator’s station provides all day comfort with an adjustable suspension seat, large floor with integrated foot rests, ergonomically designed pilot controls, and adjustable arm rests.

The TB225 features advanced controls not available in smaller models, such as electronic throttle control with automatic idle and electronic proportional auxiliary control.

In addition, the multifunction display can be used to adjust the auxiliary flow rate and save attachment presets.
