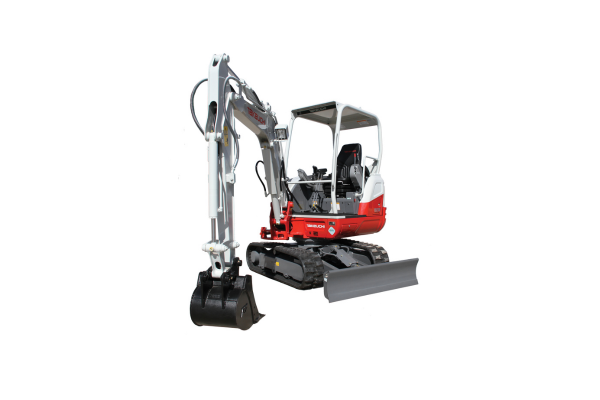

Takeuchi TB230

Emission Rating

Tier 4 Final

Net Horsepower

24.4 HP @2,400 rpm18.2 kW @2,400 rpm

Max Operating Weight

6360 lb2885 kg

Max Digging Depth

9′3.6″2835 mm

View All Specs

Features

Enables you to work in a wide range of applications and the conventional tail swing provides greater stability.

Multifunction, LED monitor provides the operator with machine vitals, flow adjustments, and attachment presets.
Electronic dial-type throttle control allows the operator to quickly adjust engine speed, and the automatic engine idle feature will automatically reduce engine speed to low idle should the machine idle more than several seconds.

The low horsepower rating of the TB230 does not require the use of DOC/DPF exhaust after-treatment system.
The variable displacement axial piston pump delivers smooth, harmonized control of the work equipment with no reduction in speed.
The standard long arm with integrated thumb mount provides you with a wider working range, dig depth, and simplifies thumb installation.
Load sensing, two-speed travel down shifts automatically from low torque/high speed mode to high torque/low speed travel when turning, pushing dirt, or travelling up an incline.
Large slew bearing provides greater longevity and stability over the life of the machine.
Cushioned cylinders improve longevity by reducing shock and reduce felt recoil to the operator for greater comfort.

All-steel construction ensures body integrity through greater strength and rigidity and protects key components from damage.
Heavy duty counterweight protects vital engine and hydraulic components from damage.
Triple flange track rollers improve track life by providing greater support, and feature multiple contact points that reduce the risk of de-tracking.

Rear hood and right side cover open high overhead, providing exceptional access to inspection and maintenance points.

The safe start system requires the safety lockout lever in the raised position in order to start the excavator, ensuring hydraulic functions are inactive at start-up.
