Komatsu

WA320-8

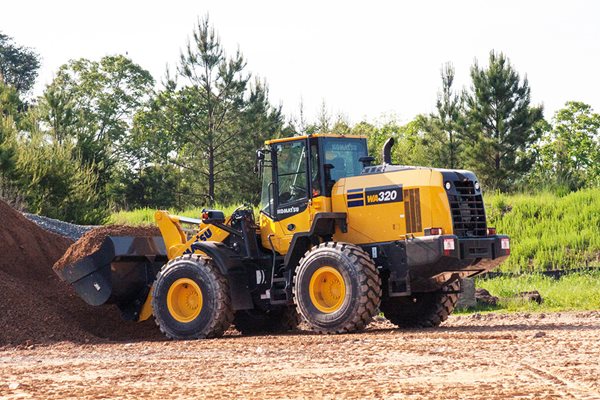

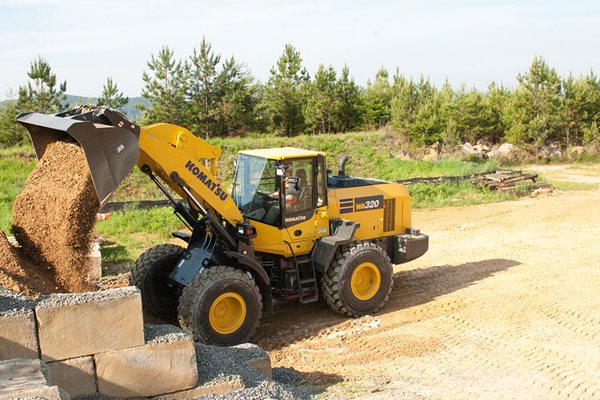

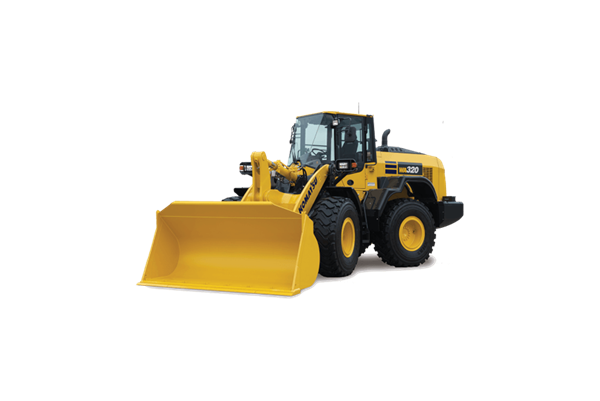

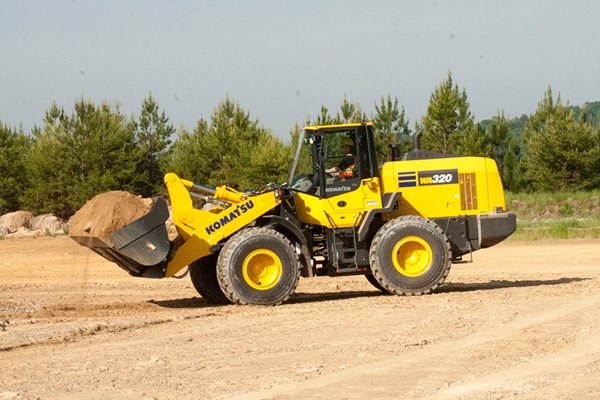

The Komatsu WA320-8 Wheel Loader’s parallel-lift linkage, with auto tilt-in to simulate a Z-bar, can be used in virtually any application from pallet handling to hard digging. The fourth generation Hydrostatic Transmission (HST), found in this Tier 4 Final compliant machine, helps prolong brake life, thanks to dynamic braking, while S-Mode gives the operator maximum control in slippery conditions. This latest addition to the wheel loader family combines high production, improved operator comfort and reduces fuel consumption by up to three percent compared to the WA320-7.

Emission Rating

Tier 4 Final

Net Horsepower

165 HP @2,100 rpm (123 kW @2,100 rpm)

Max Operating Weight

34987 lb (15870 kg)

Max Bucket Capacity

4.2 yd³ (3.2 m³)

Download WA320-8 Brochure

Features

Creep mode limits the travel speed in 1st speed range, while still allowing for full hydraulic flow.

A new standard, heated, air-suspension seat provides enhanced support on rough roads and dampens machine vibrations, providing a more comfortable ride for the operator. The angle of the armrest is fully adjustable for optimum operator comfort. A secondary F-N-R switch is incorporated into the standard multi-function mono lever.

This new system combines a Komatsu Diesel Particulate Filter (KDPF) and Selective Catalytic Reduction (SCR). The SCR NOx reduction system injects the precise amount of Diesel Exhaust Fluid (DEF) to break down NOx into non-toxic water vapor (H2O) and nitrogen gas (N2).

The HST provides quick travel response and aggressive drive into the pile. Full auto-shifting eliminates any gear shifting and kick-down operation to allow the operator to concentrate on the digging and loading. The HST also acts as a dynamic brake to slow the loader. This dramatically extends the life of the wet disc brakes.

The multi-function mono lever with EPC control for 3rd spool is standard. It includes a forward-neutral-reverse switch for quick and easy travel. Third spool attachments can be set to continual or proportional control via the monitor panel allowing the operator to control the boom, bucket and attachment all with a single lever.

The dedicated full-color monitor on the right side of the cab provides the operator with a rear view from the machine. This monitor can be always on or only on when the loader shifts into reverse. Guidelines provide the operator with visual cues for the width of the loader.

The variable traction control system is designed to adjust the traction control for each working condition. S-mode reduces tire spin in slippery or snowy conditions. Auto-mode automatically optimizes the tractive effort for various working conditions. Max traction provides the full, 100%, tractive effort.

Specs & Compare

Printer Friendly Version

Select up to 4 models to compare specifications

Features

CREEP MODE

NEW OPERATOR SEAT

HEAVY-DUTY AFTER TREATMENT SYSTEM

HYDROSTATIC TRANSMISSION

MULTI-FUNCTION MONO LEVER

STANDARD REAR VIEW MONITORING SYSTEM

VARIABLE TRACTION CONTROL SYSTEM
